Material - Steel

Major Axis- 105mm

Minor Axis - 57mm

Gate Opening - 17mm

Bar Diameter - 10mm

Weight -165g

BL kN - 22

Conformity - EN362

Connector Information

The European Standard for connectors for use in Work Positioning & Fall Arrest is EN 362

The standard specifies a MINIMUM major axis gate closed and unlocked static strength of 15kN

The standard specifies a MINIMUM major axis gate closed and locked static strength of 20kN

The stated strength is for loads applied along the major axis

The Mountaineering connectors certified to EN 12275 exceed the requirements of EN 362

--

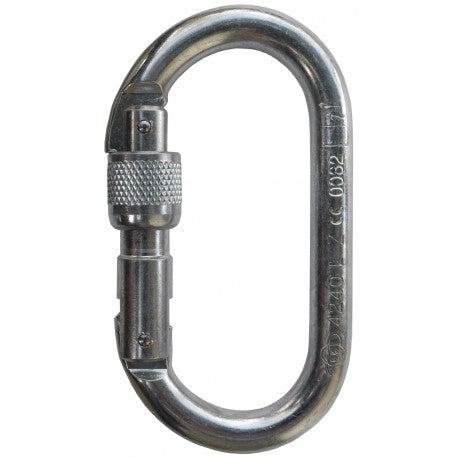

Foin 10mm Steel Oval Screwgate Karabiner

A basic steel karabiner. This oval connector allows it to be used with the full range of pulleys, as well as all the other standard uses for a karabiner.

Steel karabiners manufactured by Foin Groupe are an economical choice proven for their strength, reliability and closure systems under intensive use. For use in work positioning and fall arrest. Supplied with instructions for use and a certificate of compliance. Marked with a batch number (not individually serial numbered).

Karabiner Diagram

A = 105mm

B = 57mm

C = 17mm

Ø = 10mm

Oval Screwgate Steel 10mm
