12mm Klettersteig

The Klettersteig shape takes the strength and volume increases of an Offset D and then extends them even further to give a high volume, super-strong connector. The Klettersteig’s wide gate opening makes it particularly suitable for clipping oversize items, or simply allows ease of use in more normal situations.

Locksafe 3-way locking mechanism.

This is the krab we use for the primary mounting point for Trublue Auto Belays - ideally in conjunction with a STAL 3 Link anchor - which provides a full range of motion, no acute wear points and a very strong connection.

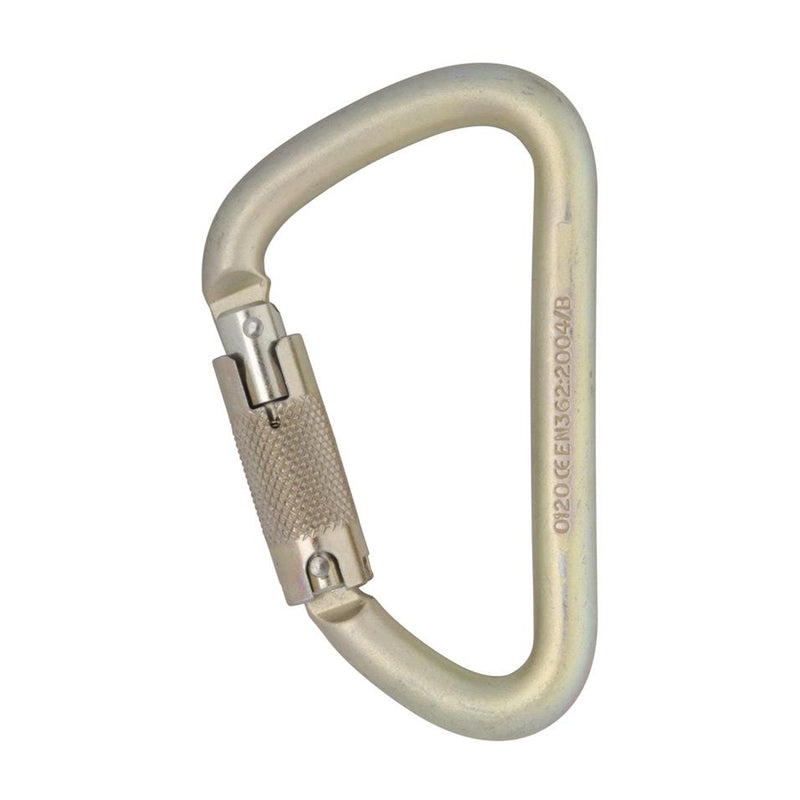

12mm Klettersteig Locksafe

C847

Light Gold

45kN

9kN

12kN

76 x 126mm

283g

24mm

EN 362:2004 B/T, EN EN12275:2013 B & K

DMM 12mm Klettersteig Locksafe - Auto Belay Mounting Carabiner
