Detailed description

Easier handling:
- sheave mounted on sealed ball bearings for excellent efficiency
- gate opening on the non-pulley side, to facilitate installation on devices
- Keylock system prevents any accidental snagging of the carabiner when putting the pulley in place

H cross-section of carabiner:
- ensures an improved strength-to-weight ratio
- protects markings from abrasion

Two locking systems available:
- TRIACT-LOCK: automatic locking with triple-action gate opening
- SCREW-LOCK: the manual screw-lock with red band provides a visual warning when the carabiner is unlocked

Specifications

Material(s): aluminum

Min. rope diameter: 7 mm

Max. rope diameter: 13 mm

Sheave diameter: 18 mm

Maximum working load: 2 x 2 = 4 kN

Efficiency: 85 %

Major axis strength: 20 kN

Minor axis strength: 8 kN

Open gate strength: 7 kN

--

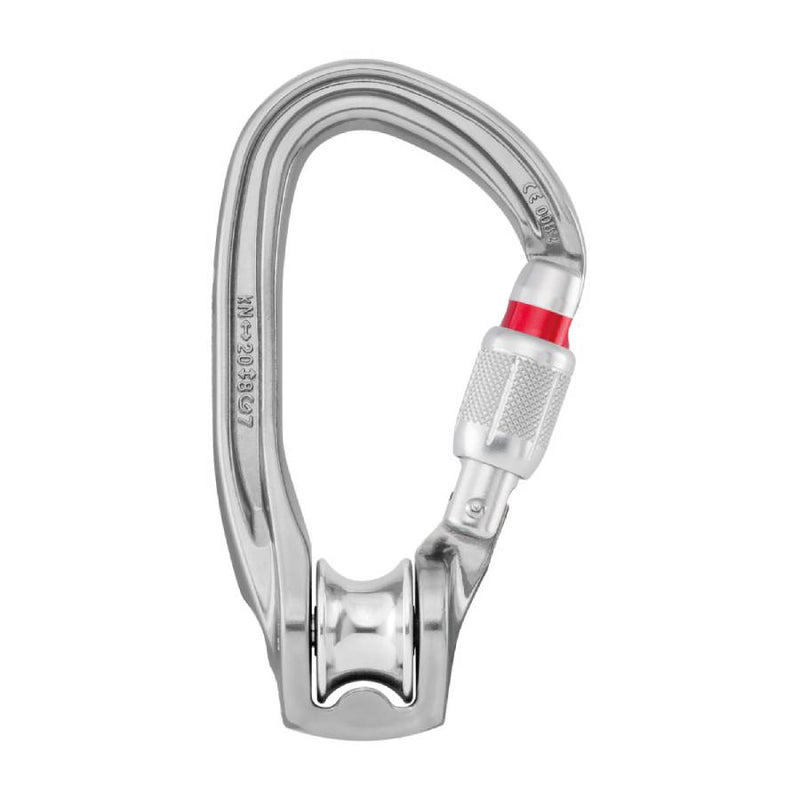

Petzl Rollclip Z Screw Lock Pulley Karabiner with integrated pulley wheel

The Petzl Rollclip Z screw lock karabiner has an integrated pulley wheel which helps reduce friction / rope drag. With a triple action gate it offers the highest level of safety. Ideal for use in situations where a moving rope needs to be deviated but space is limited or weight of equipment is an issue.

Working rope diameters = 7mm to 13mm

Conformity:

EN 12278 | EN 362

Petzl Roll Clip Z, Screw Gate
